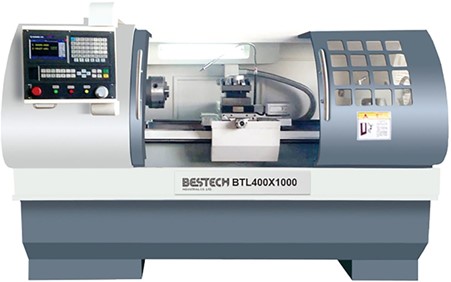

BTL400
€2,500.00
- Door equipped with a safety switch
- Stand and base use full casting, good rigidity
- Bed guideways inductively hardended (HRC42-52)
Specifications BTL400
Model | BTL400 |
Max.Swing over bed | Ø 400mm |
Max.Swing over carriage | Ø 240mm |
Distance between centers | 750/1100/1500mm |
Bed width | 330mm |
Spindle nose | A2-6 |
Spindle bore | Ø 60mm |
Taper of spindle bore | MT6 |
Chuck | 6’’ ( 可选 8’’Optional) |
Range of spindle speed | 150-2500rpm ( 可选两档变速 60- 600/280-2000rpm) |
X a-xis travel | 230mm |
Z a-xis travel | 750/1000/1500mm |
X/Z Rapid speed X/Z | 4/7m/min |
Station of tool carrier | 4 ( 可选 6 /8 Optional) |
Max.Section of tool | 20x20mm |
Tailstock-sleeve travel | 120mm |
Tailstock-sleeve diameter | Ø 55mm |
Tailstock taper | MT4 |
Main motor power | 5.5kw ( 可选 7.5kw) |
Coolant pump power | 180w |
Net weight | 1500/1700/2100kg |
Gross weight | 11700/1900/2300kg |
Packing size | (2420/2740/3420)x1620x2100mm |
ACCESSORIES FOR BTL400
Wrenches |
Alloy center |
Three-jaw chuck |
Reduction sleeve |
Four position electrit turret |
Auto lubration coolant system |
Frequency conversion main motor |
GSK980TDC Numerical control system |
AC servo motor |
Hydraulic station |
Hydraulic tail-stock |
Hydraulic station |
Chip conveyor and cart |
Pneumatic or hydraulic chuck |
Spring fastener of pneumatic |
Horizontal six or eight-station |
Siemens808D ADVANCED |
Fanuc oi mate numeral control system |
